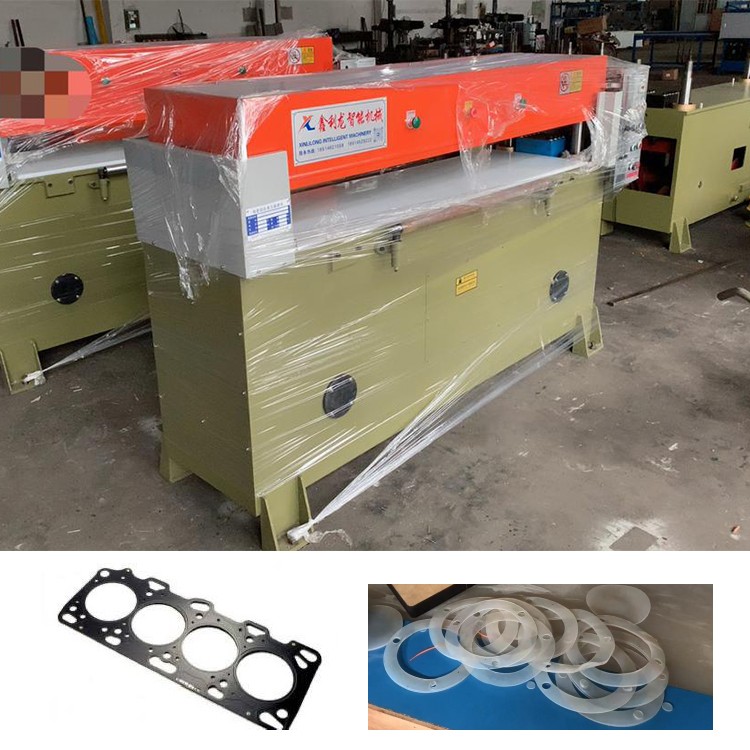

40Ton Four Column Hydraulic Plane Cutting Press for gasket

Category： 40Ton Four Column Hydraulic Plane Cutting Press
Warranty:1 Year
Voltage:220v/380v or customized
Name：cutting/making machine
Product description：High precision 40Ton Four Column Hydraulic Plane Cutting Press for rubber gaskets. Stable hydraulic pressure, clean cutting edges, ideal for die cutting rubber sheets, silicone gaskets and insulation
INQUIRY EMAIL

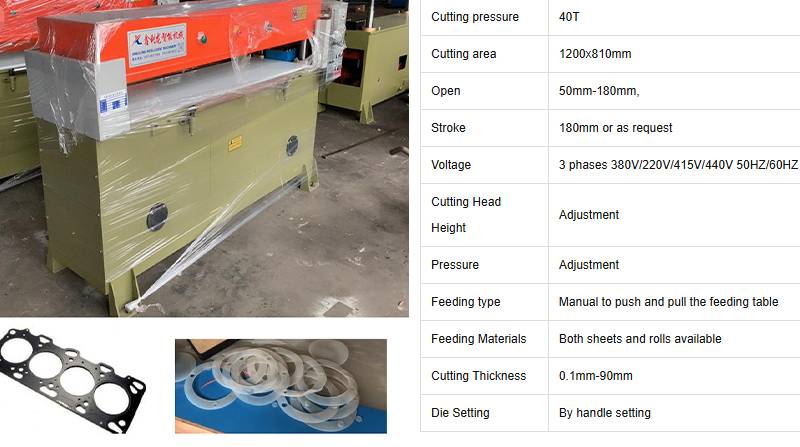

一、40Ton Four Column Hydraulic Plane Cutting Press for gasket details：

Cutting pressure	40T
Cutting area	1200x810mm
Open	50mm-180mm,
Stroke	180mm or as request
Voltage	3 phases 380V/220V/415V/440V 50HZ/60HZ
Cutting Head Height	Adjustment
Pressure	Adjustment
Feeding type	Manual to push and pull the feeding table
Feeding Materials	Both sheets and rolls available
Cutting Thickness	0.1mm-90mm
Die Setting	By handle setting
