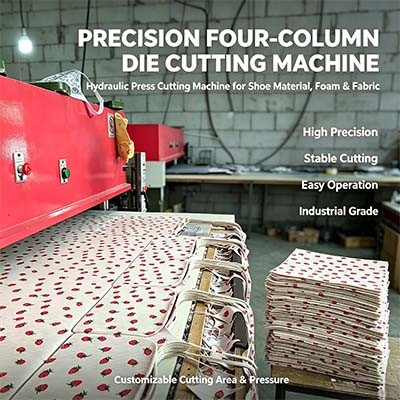

60T Hydraulic Cutting Machine for Luggage

Precision Four-Column & Double-Cylinder Balanced Structure: This is the core design of the 60-ton class. Driven by two hydraulic cylinders and guided by four precision columns, combined with a balanced linkage mechanism, it ensures uniform force distribution across the entire cutting area, guaranteeing consistent cutting depth at every position – which is critical for precision cutting of multi-layer materials.

Core Performance Advantages: 60-ton precision four-column cutting machines generally adopt a double-cylinder and four-column guided balanced structure, ensuring uniform force distribution across the cutting area and consistent cutting depth at every position. The automatic slow-cutting function decelerates the press plate upon contact with the die, effectively preventing dimensional discrepancies between the top and bottom layers of cut material. The centralized automatic lubrication system is a standard feature that enhances machine durability and precision.

60T Hydraulic Cutting Machine Key Parameter Analysis:
Cutting Force & Area:

All models have a cutting force of 60 tons, but the cutting area (which determines the maximum die size) varies considerably. If you need to cut large-area materials (such as automotive interiors or sofa fabrics), it is recommended to focus on models with a cutting area of approximately 1600×800 mm or larger.
Stroke Range:

This refers to the up-and-down travel of the press plate, ranging from 50 to 250 mm. A larger value means the machine can handle a wider range of material thicknesses.
Machine Weight:

Net weight ranges from 3,200 kg to 5,000 kg. A heavier machine generally indicates a more robust structure, which ensures better long-term precision stability.
Selection Suggestions:

Most manufacturers support customization of parameters such as cutting area and worktable dimensions according to customer requirements. In addition to basic parameters, consider whether the machine includes features like automatic slow cutting, centralized lubrication, and automatic feeding systems, which can enhance production efficiency and product quality.

60T Hydraulic Cutting Machine Technical Parameters：

Cutting Force 60 tons (600 KN)
Motor Power 4 – 5.5 KW
Stroke Range 50 – 250 mm (adjustable)
Cutting Area Common sizes approx. 1400×810 mm to 1600×810 mm; customizable
Net Weight 3200 – 4300 kg, reflecting robust construction and stability
Machine Dimensions (L×W×H) Approx. 2450×1250×1450 mm to 3000×2300×1570 mm
Distance Between Worktable and Press Plate 180 – 250 mm
