What is the purpose of equipping a safety light curtain on a die cutting press machine?
The Functions and Necessity of Safety Light Curtains for Hydraulic Die Cutting Machines
Nowadays, manufacturers of hydraulic die cutting machines and foreign trade enterprises are equipped withsafety light curtains (safety gratings) as standard for hydraulic die cutting machines. Many people wonder: What are the functions of installing a safety light curtain on a die cutting machine? Is it really necessary? This article elaborates on the core values of equipping hydraulic die cutting machines with safety light curtains from five dimensions: personal protection, equipment protection, production efficiency, compliance certification, and operation and maintenance safety.
1. Safety Protection for Operators of Hydraulic Die Cutting Machines
During the operation of a hydraulic die cutting machine, the upper and lower dies close rapidly with an instantaneous pressure of several tons to dozens of tons. Once operators make operational mistakes and their hands accidentally enter the dangerous mold area, severe injuries such as crush wounds, cuts, and even finger amputations are highly likely to occur. Such accidents are common in small processing factories without safety protection measures.

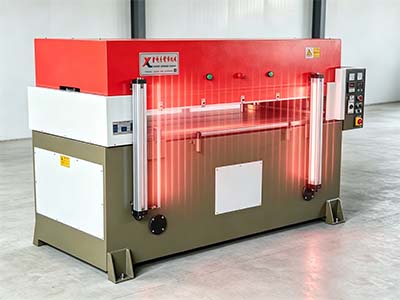

A safety light curtain is a professional protective device designed for high-risk stamping and cutting equipment. It forms an invisible protective wall through infrared beams and features a millisecond-level ultra-fast response. During operation, once any part of the human body blocks the infrared beams, the equipment control system will immediately receive an emergency stop signal, cut off the downward pressure power instantly, and make the sliding block stop pressing down or lift up automatically. The whole process requires no manual intervention, fundamentally eliminating mechanical injury risks and building a solid safety barrier for frontline workers.
2. Replace Bulky Traditional Protective Facilities for Hydraulic Die Cutting Machines
Traditional hydraulic leather die cutting machines mostly adopt fixed protective fences for safety protection. Such mechanical protective devices have obvious drawbacks: complicated assembly and disassembly, blocked operating vision, and reduced loading and unloading efficiency. To improve working efficiency, many workers will privately remove the protective accessories, which brings greater potential safety hazards.
The installation of safety light curtains will not occupy operating space or block the operating vision. Workers can freely complete routine operations such as material feeding, positioning and picking finished products without repeated assembly and disassembly of protective parts. While ensuring 100% safety protection, it effectively improves the workshop production efficiency and meets the demands of mass and high-frequency die cutting operations.
3. Protect Cutting Dies and Main Equipment of Hydraulic Die Cutting Machines
Many enterprises only focus on personal safety but ignore the equipment loss caused by the absence of safety light curtains on die cutting machines. It is common for foreign objects to fall between the upper and lower pressure plates during workshop operation. If the machine continues the die-closing action, the upper and lower cutting dies will collide rigidly, resulting in die damage. In severe cases, the oil cylinder will be damaged, leading to high maintenance costs, equipment shutdown and delayed production progress.
After installing a safety light curtain, the equipment will trigger an emergency stop immediately once foreign objects enter the dangerous cutting area and block the infrared beams. It avoids rigid collision of dies, effectively protects precision cutting dies and core equipment components, greatly reduces the cost of die replacement and equipment maintenance, minimizes unplanned shutdown losses, and saves considerable operation and maintenance costs for enterprises in the long run.
4. Meet Domestic and Export Certification Standards
Die cutting machines belong to high-risk stamping equipment. Installing safety light curtains is a mandatory requirement for safety production inspections of domestic factories. For equipment exported to overseas markets (such as the EU region), safety light curtains are indispensable for passing CE and other mechanical safety certifications, facilitating smooth foreign trade shipment.
Conclusion
For hydraulic die cutting machines, safety light curtains are not optional accessories but essential safety components. They can fundamentally prevent industrial injuries, help enterprises pass overseas export certifications, and balance safety production and operational efficiency, serving as reliable protective accessories to reduce risks in all die cutting processing workshops.
For all enterprises using die cutting machines, the installation of safety light curtains is not only responsible for employees’ personal safety, but also a key measure for enterprises to achieve compliant operation, stable production and long-term development.
